Aluminium spacer that lifts the ELEMENTS MK2 635 columns to listening height above the subwoofer, with E-Connect pass-through and no visible cables.

Concept and modularity

• Type: active modular column sound system
• Sound dispersion principle: modular column line array
• Compatible elements: ELEMENTS MK2 635 columns, ELEMENTS MK2 spacer, ELEMENTS MK2 110 Sub A and ELEMENTS MK2 115 Sub A subwoofers
• Scalability: up to three mid/high columns and two subwoofers, depending on the configuration
• Automatic detection of the number of connected columns
• System compatibility: can be integrated with the LINEAR 5 MK2 and LINEAR 9 ranges
• Usage configurations: speech, conference, corporate, DJ, concert, live band, cultural installation, celebration and events

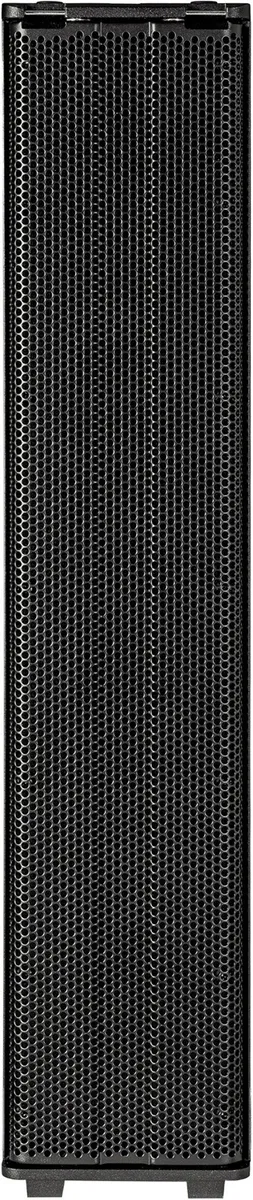

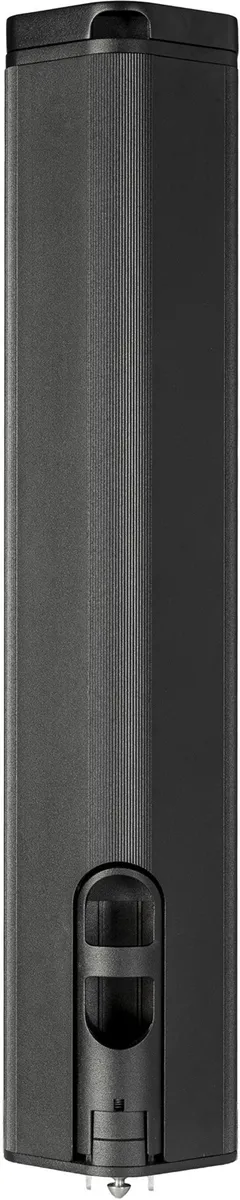

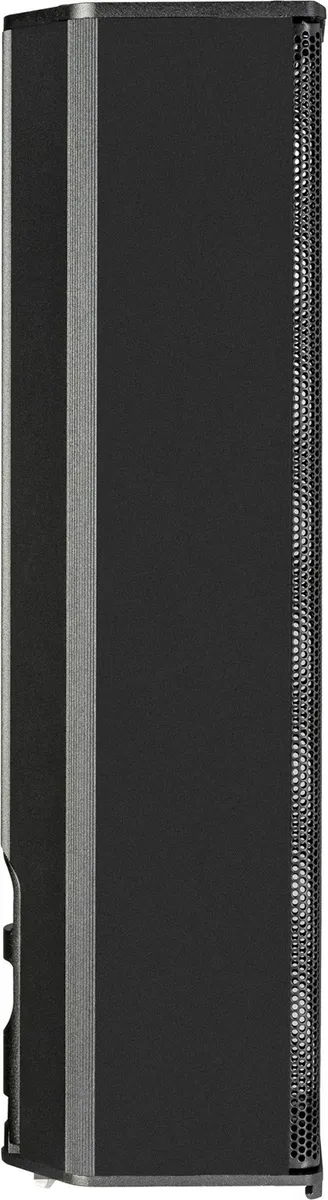

ELEMENTS MK2 635 mid/high column

• Design: passive full-range column speaker
• Enclosure principle: sealed
• Speakers: 6 x 3.25 inches
• Waveguides: 6 x phase plugs
• Peak power handling: 250 W
• Nominal impedance: 12 ohms
• Maximum peak level: 132 dB
• Crossover frequency: 175 Hz
• Frequency response at -6 dB: 170 Hz to 18 kHz
• Frequency response at -10 dB: 145 Hz to 20 kHz
• Horizontal x vertical dispersion at -9 dB: 90 degrees x 5 degrees
• Input: 1 x E-Connect MK2
• Parallel output: 1 x E-Connect MK2
• Enclosure material: aluminium
• Finishing: Black powder-coated coating
• Grille: steel with anti-corrosion treatment
• Dimensions: 11.2 x 56 x 15.1 cm
• Weight: 7.3 kg

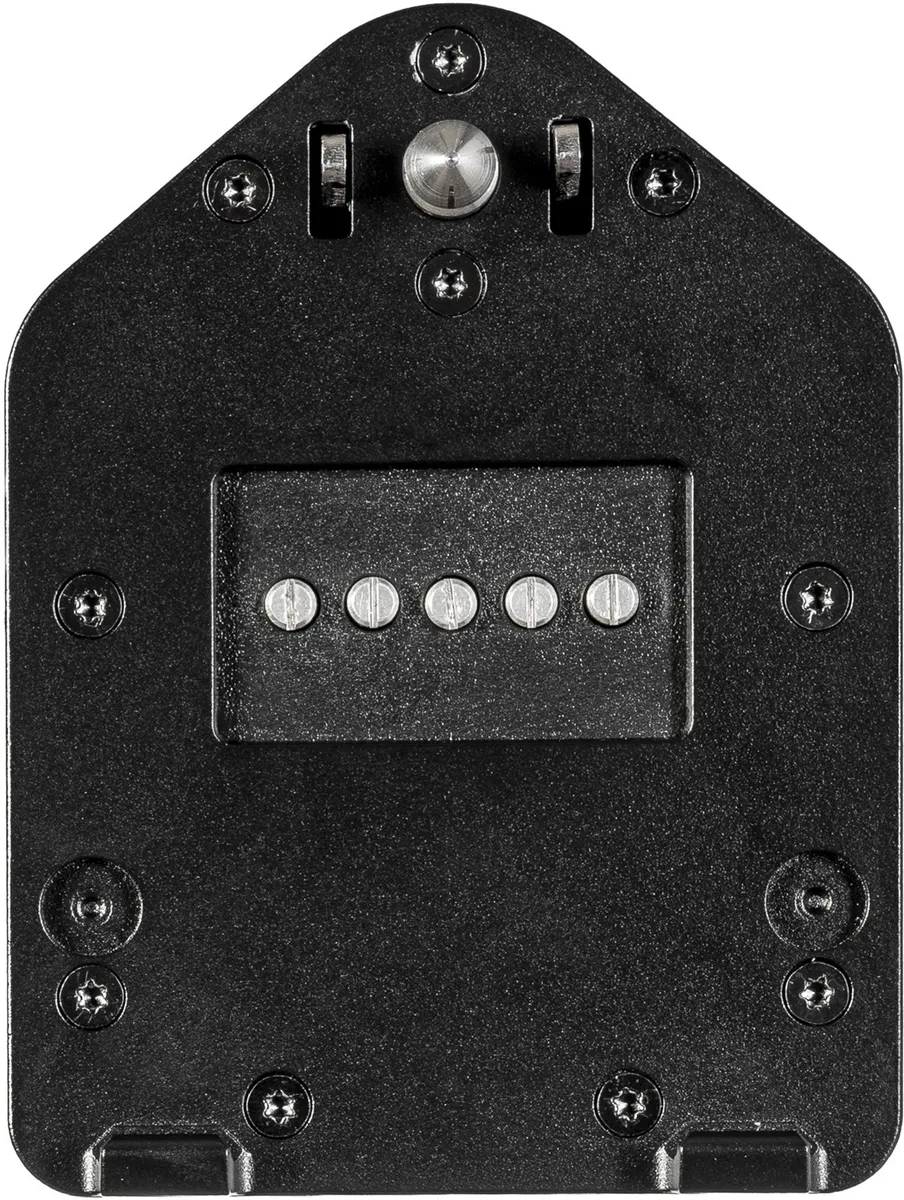

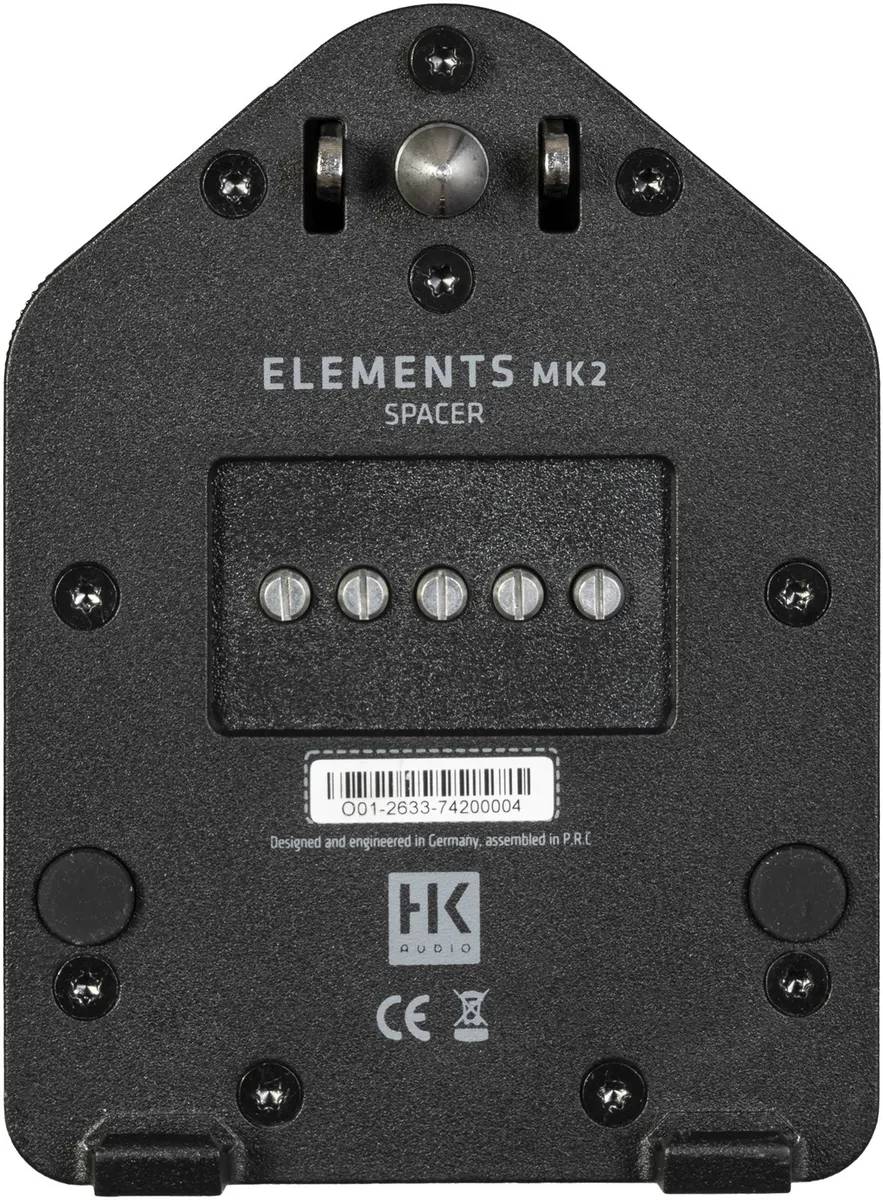

ELEMENTS MK2 spacer

• Input: 1 x E-Connect
• Parallel output: 1 x E-Connect
• Material: aluminium
• Finishing: Black powder-coated coating
• Dimensions: 11.2 x 56 x 15.1 cm
• Weight: 3.85 kg
