Compact active 10" subwoofer with 900 W RMS, DSP and network connection. The base of the ELEMENTS MK2 Smart Base column system.

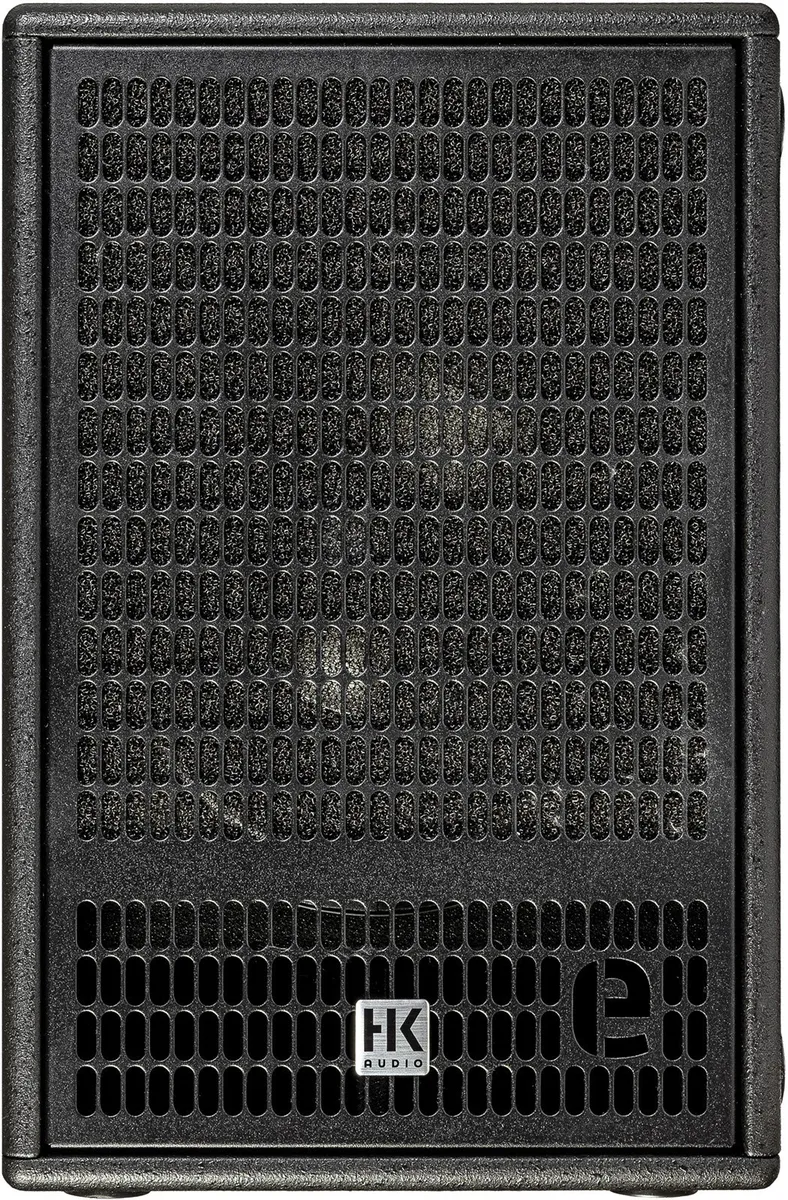

ELEMENTS MK2 110 Sub A

• Type: active subwoofer with DSP
• Woofer: 1 x 10 inch
• Amplifier power: 900 W RMS, 1800 W peak
• Maximum SPL: 123 dB
• Frequency response at -6 dB: 52 Hz to crossover
• Frequency response at -10 dB: 49 Hz to crossover

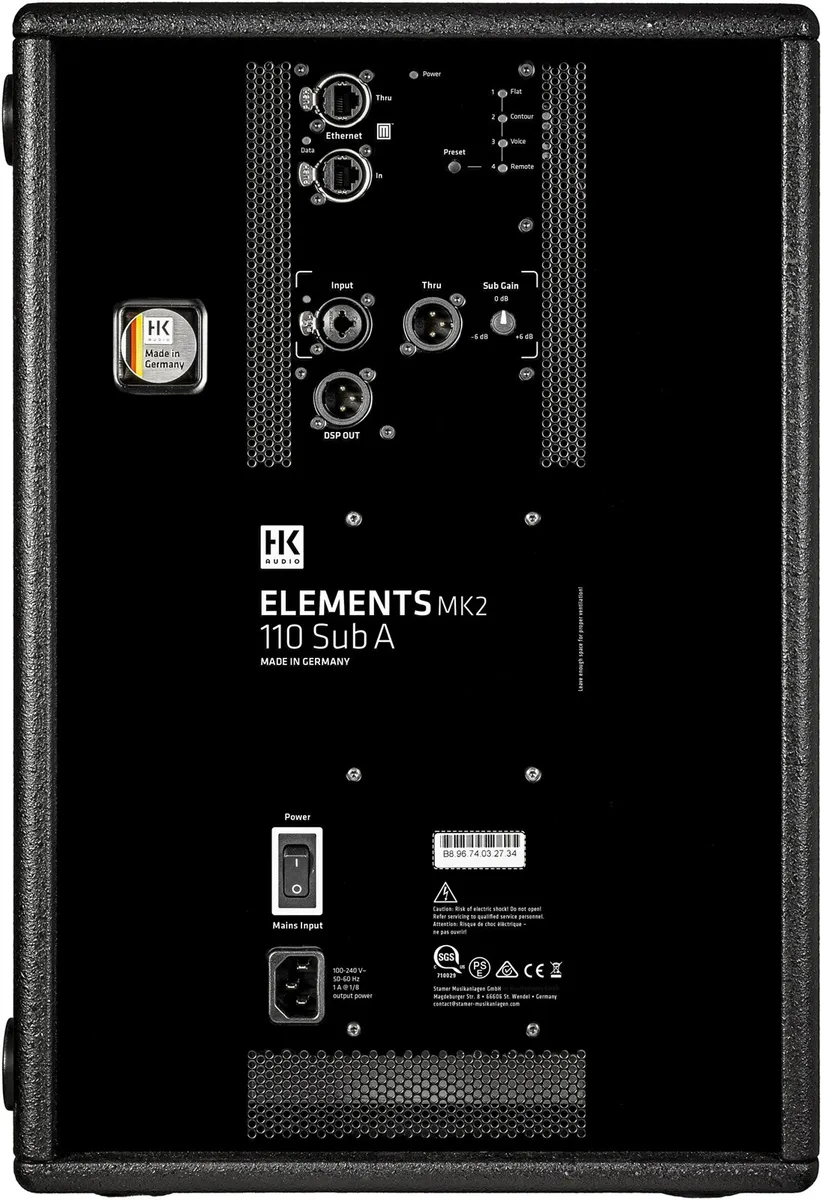

• Network: RJ45 in and out
• Dimensions: 328 x 673 x 486 mm
• Weight: 28.5 kg

Concept and scalability

• Professional modular column PA system
• Configuration based on the ELEMENTS MK2 635, ELEMENTS MK2 SPACER modules and the 110 Sub A or 115 Sub A active subwoofers
• Up to 3 mid/high-frequency modules and 2 subwoofers, depending on the sound reinforcement requirements
• Automatic detection of the number of connected mid/high-frequency modules
• Automatic compensation of the midrange response according to the configuration

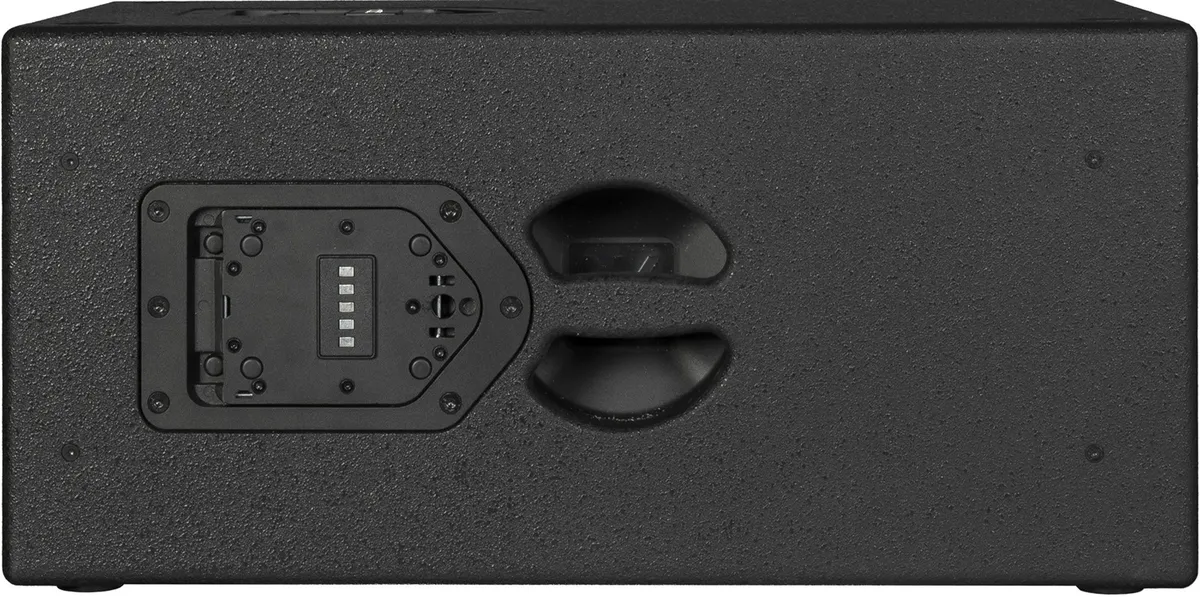

• Tool-free HK Audio SnapLock mechanical and audio connection
• Compatible with the LINEAR 5 MK2 115 Sub A low-frequency extension
• Cardioid configurations possible with compatible subwoofers

HK Audio ELEMENTS MK2 635 column module

• Type: passive full-range column speaker
• Enclosure principle: sealed enclosure
• Peak power handling: 250 W
• Nominal impedance: 12 ohms
• Maximum peak sound pressure level: 132 dB
• Crossover frequency: 175 Hz
• Frequency response at -6 dB: 170 Hz to 18 kHz
• Frequency response at -10 dB: 145 Hz to 20 kHz
• Dispersion at -9 dB: 90 degrees horizontal x 5 degrees vertical
• Mid/high-frequency drivers: 6 x 3.25 inches
• Waveguides: 6 x phase plug
• Input: 1 x E-Connect MK2
• Parallel output: 1 x E-Connect MK2
• Enclosure material: aluminium
• Finishing: Black powder coating
• Front grille: steel with anti-corrosion treatment
• Dimensions: 11.2 x 56 x 15.1 cm
• Weight: 7.3 kg

HK Audio ELEMENTS MK2 SPACER spacer

• Material: aluminium
• Finishing: Black powder coating
• Input: 1 x E-Connect
• Parallel output: 1 x E-Connect
• Dimensions: 11.2 x 56 x 15.1 cm
• Weight: 3.85 kg
