SAA MPR-604-DAB

Kuvaus

Määrittely

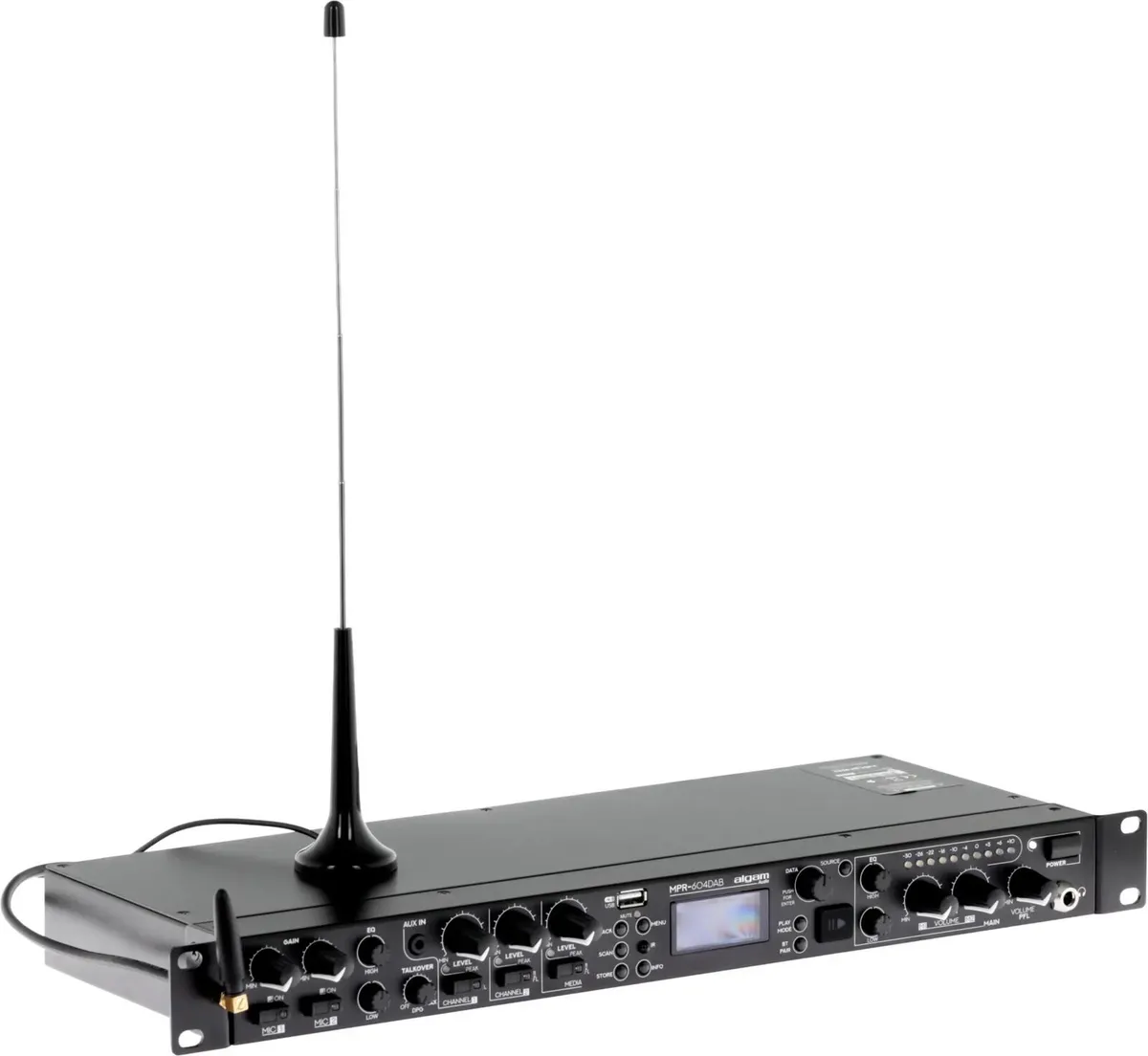

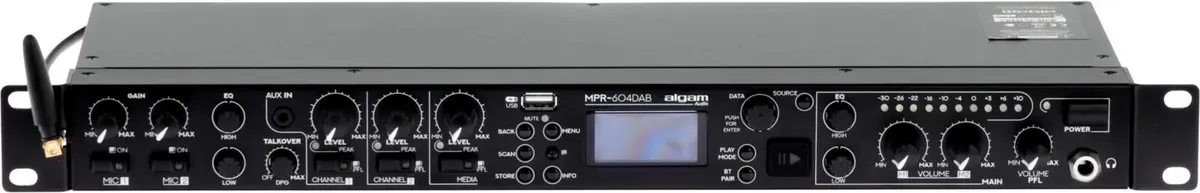

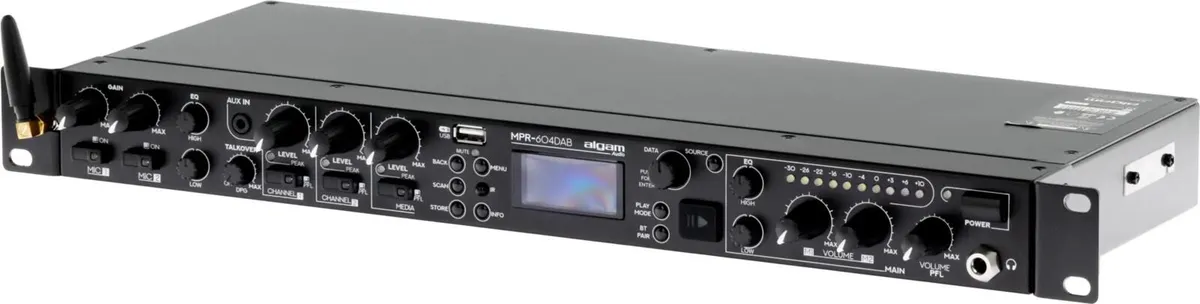

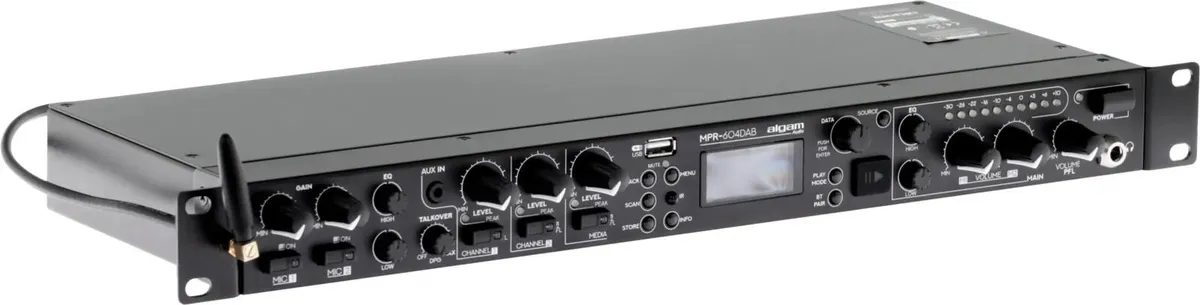

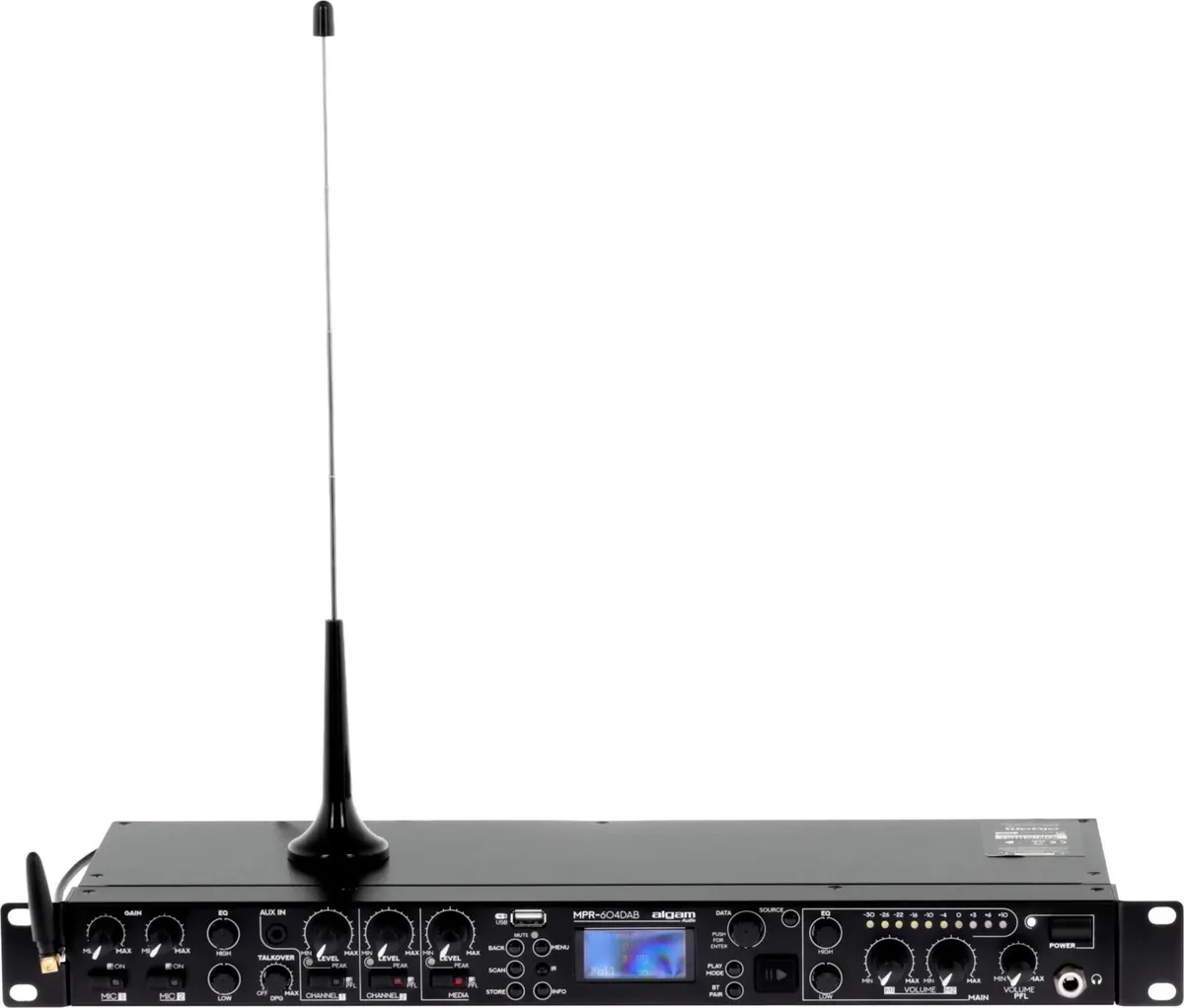

1U mixer preamp with two mic and two line channels, USB player, Bluetooth, FM and DAB+ tuner, two zoned outputs and an emergency input. For shops, hotels and schools.

• 2 line channels with stereo RCA inputs, gain (rear) and level (front), peak LED and PFL
• Front 3.5 mm aux input that overrides the Channel 1 RCA input
• 2 balanced 6.35 mm jack mic inputs for dynamic microphones (no phantom power), individual gain and on/off
• Shared 2-band mic EQ (±12 dB), adjustable Talkover depth and threshold
• USB media player: MP3 and WAV, FAT32 drives up to 16 GB, up to 2,000 files
• Playback modes: single, all, repeat one, repeat all, random
• FM and DAB/DAB+ tuner with auto scan, manual tuning and presets
• Bluetooth streaming from phone or tablet, antenna supplied

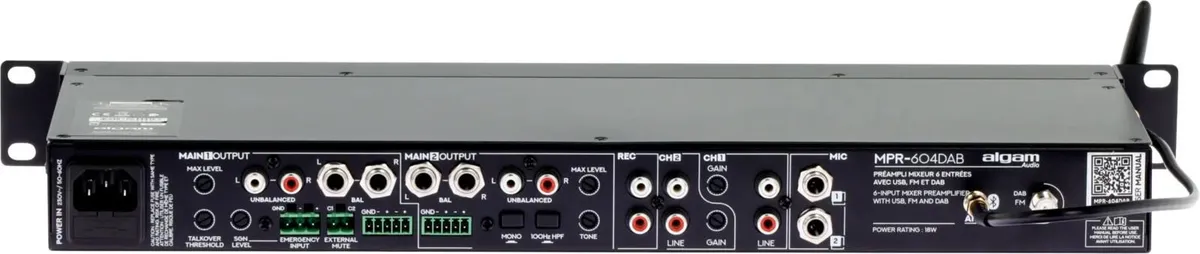

• Main output 1: balanced jack, RCA and Euroblock, max level control, volume and 2-band EQ (±12 dB)
• Main output 2: balanced jack, RCA and Euroblock, max level, volume, mono switch, 100 Hz high-pass filter and tone control
• Record output on RCA
• Headphone output with level control and PFL monitoring
• Emergency input on Euroblock that mutes all outputs and broadcasts the alert on both mains

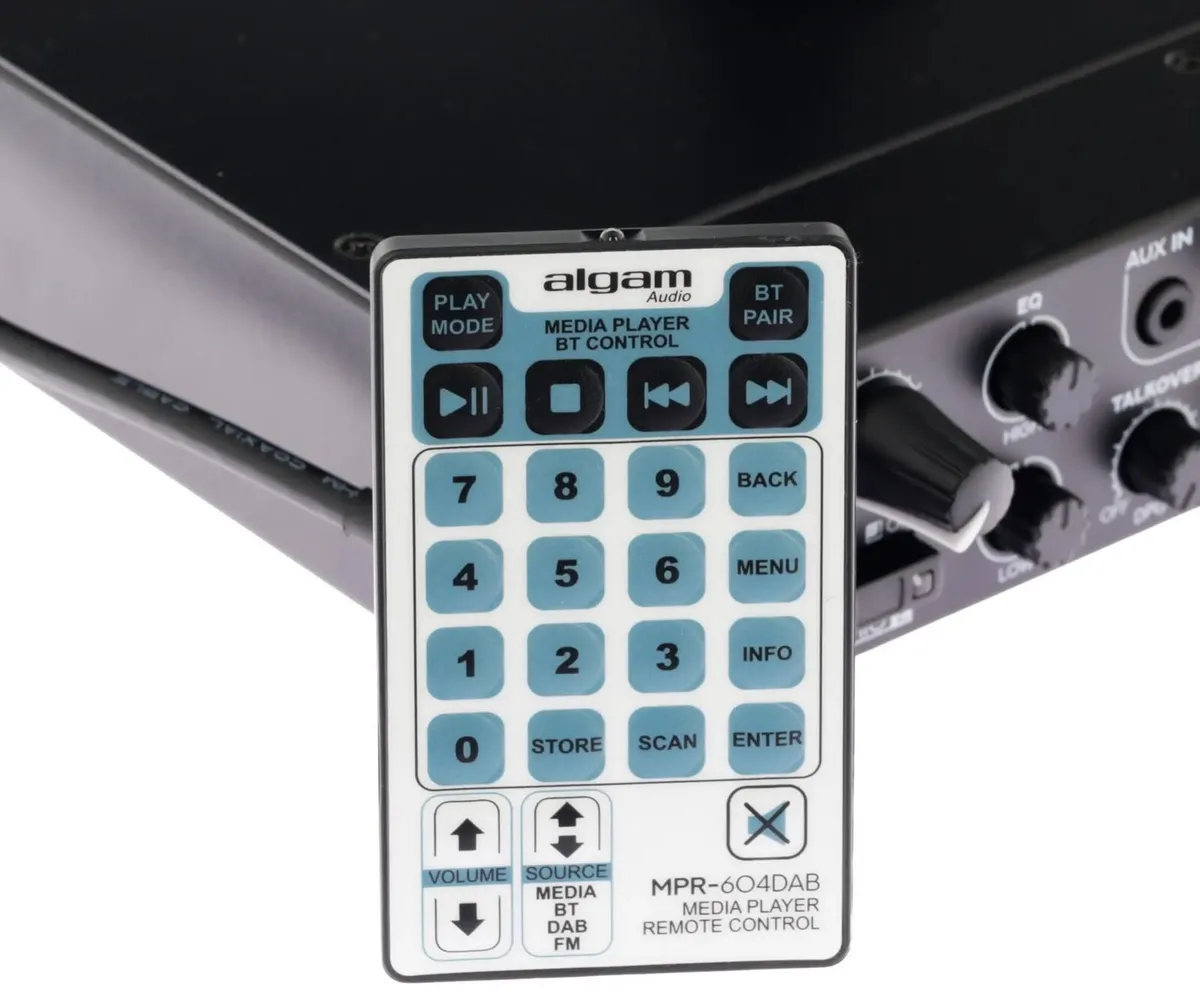

• Infrared remote control included
• Frequency response: 20 Hz to 20 kHz, THD below 0.05 %
• Power: 230 V or 115 V selectable, 18 W max consumption
• Dimensions: 482.6 x 44.5 x 152 mm (1U rack)
• Weight: 2.6 kg
