ADP-DAI-AU-1X0

Kuvaus

Määrittely

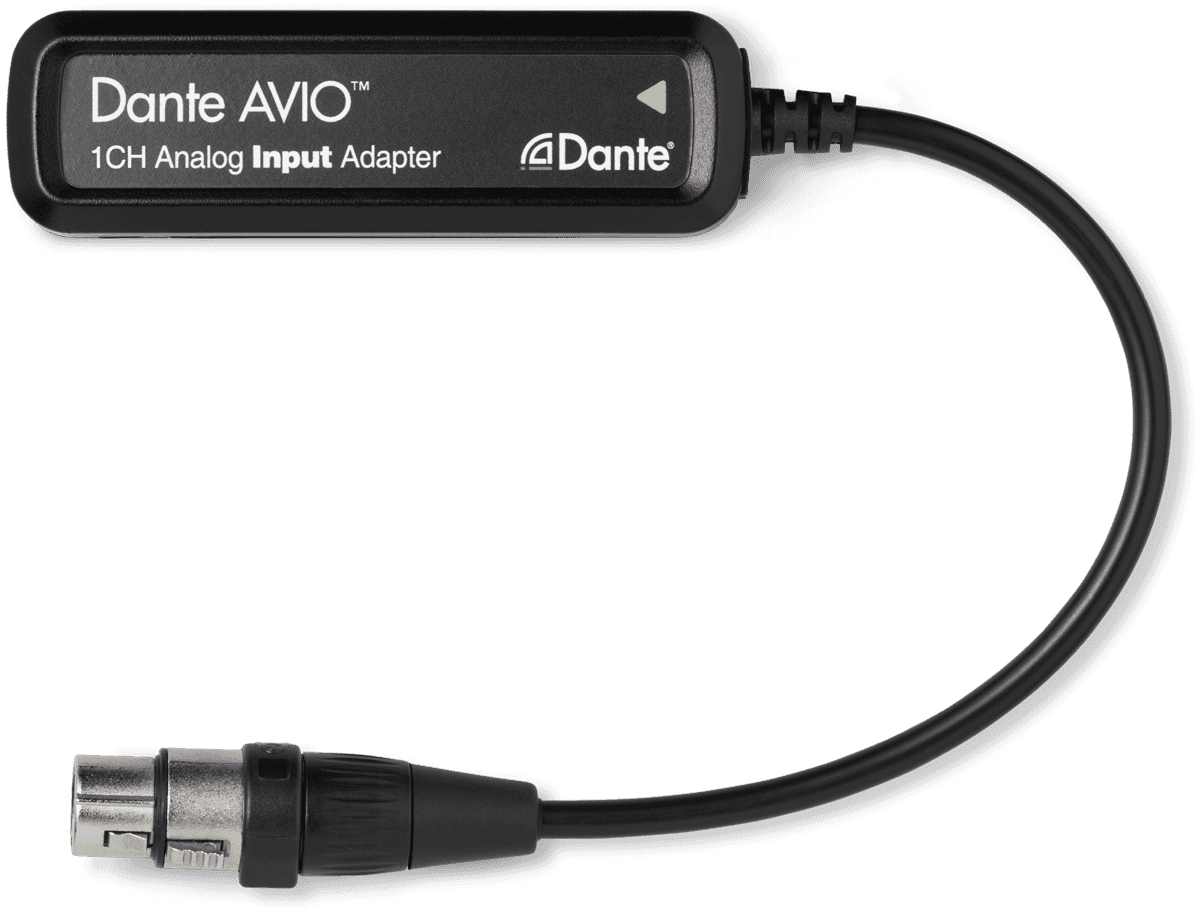

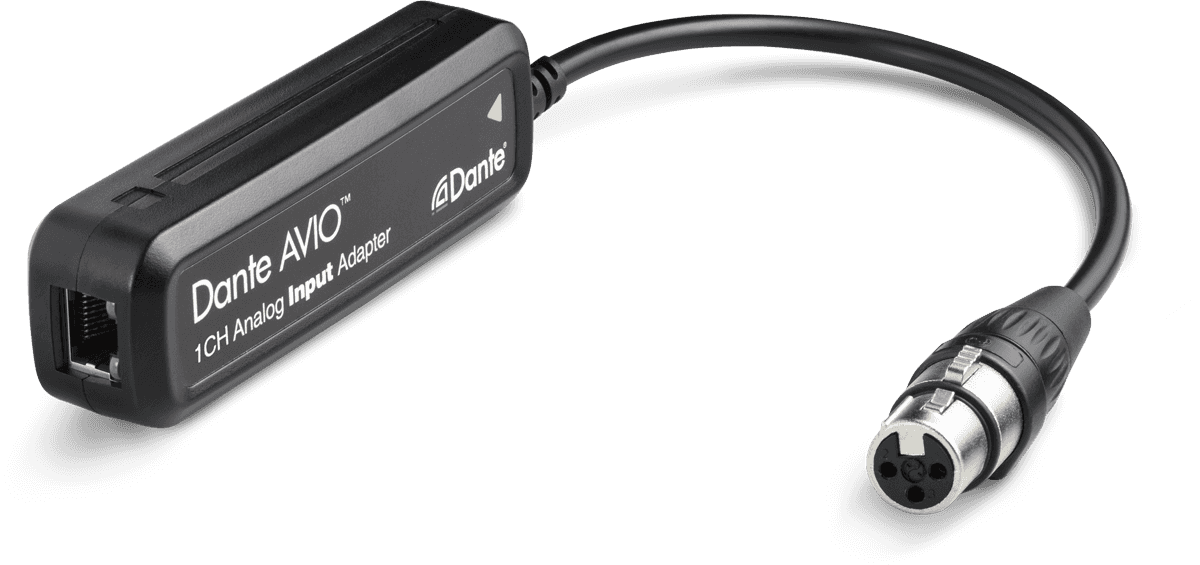

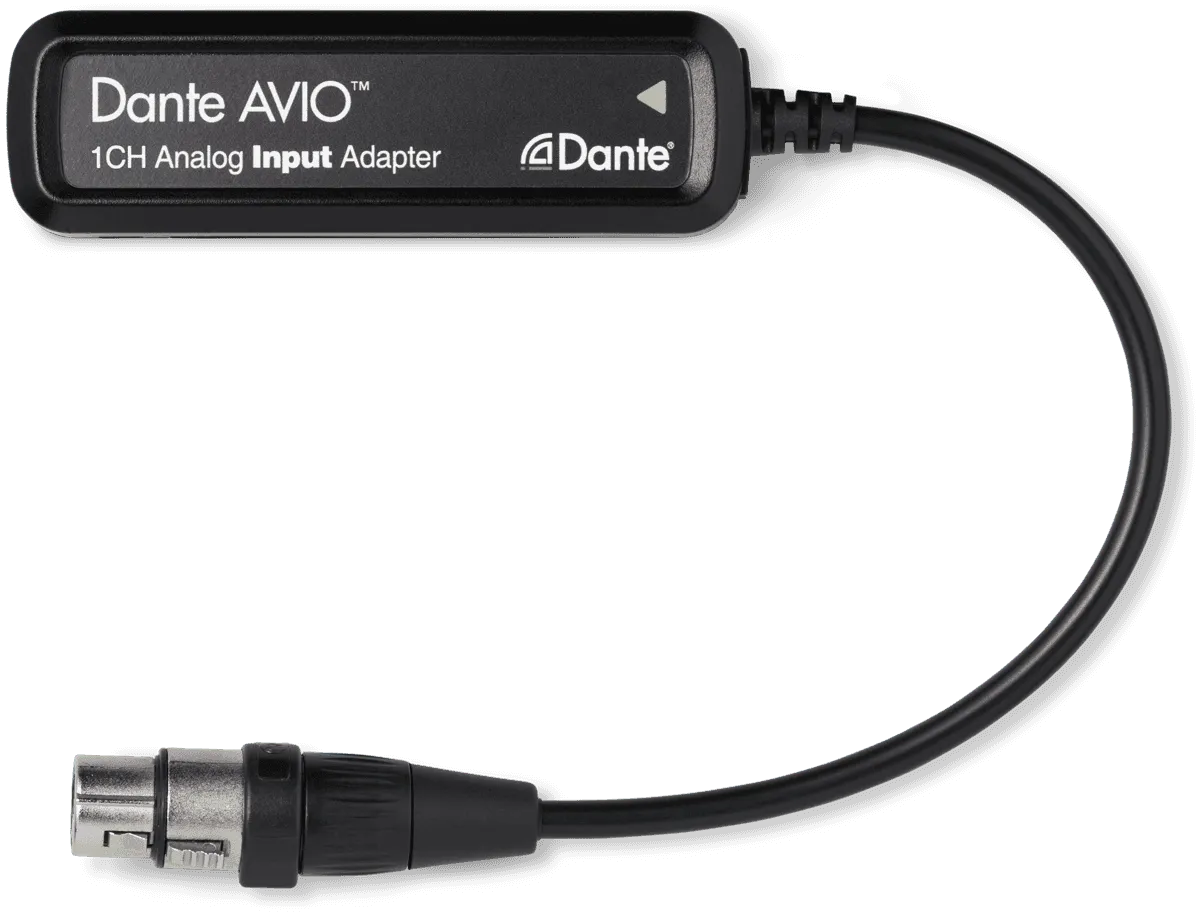

Dante AVIO Analog Inputs let you use analog audio line-level source gear you already own to feed any Dante-connected system. Don’t abandon trusted mixing consoles, wireless mics and other analog sources - adapt them to the world of audio networking with Dante AVIO.

AVIO is easily controlled with the Dante Controller software from Audinate connected to a PC or Mac.

• Connect legacy mixers and consoles to a Dante network

• Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters

• Connect stage DI boxes and keyboard instruments directly to a Dante network

• Resolution: 44.1, 48, 96 kHz / 24-Bit

• Line levels: +18 dBu / +4 dBu / 0 dBu / 0 dBV / -10 dBV (via Dante Controller)

• Frequency respons: 20 - 20000 Hz (±0,5 dB)

• Impedance: 20 Ohm symetric / 10 Ohm asymetric

• Dynamic range: >100dB

• Signal to noise ratio: >100dB

• Total harmonic distortion:
