ADP-AES3-AU-2X2

Kuvaus

Määrittely

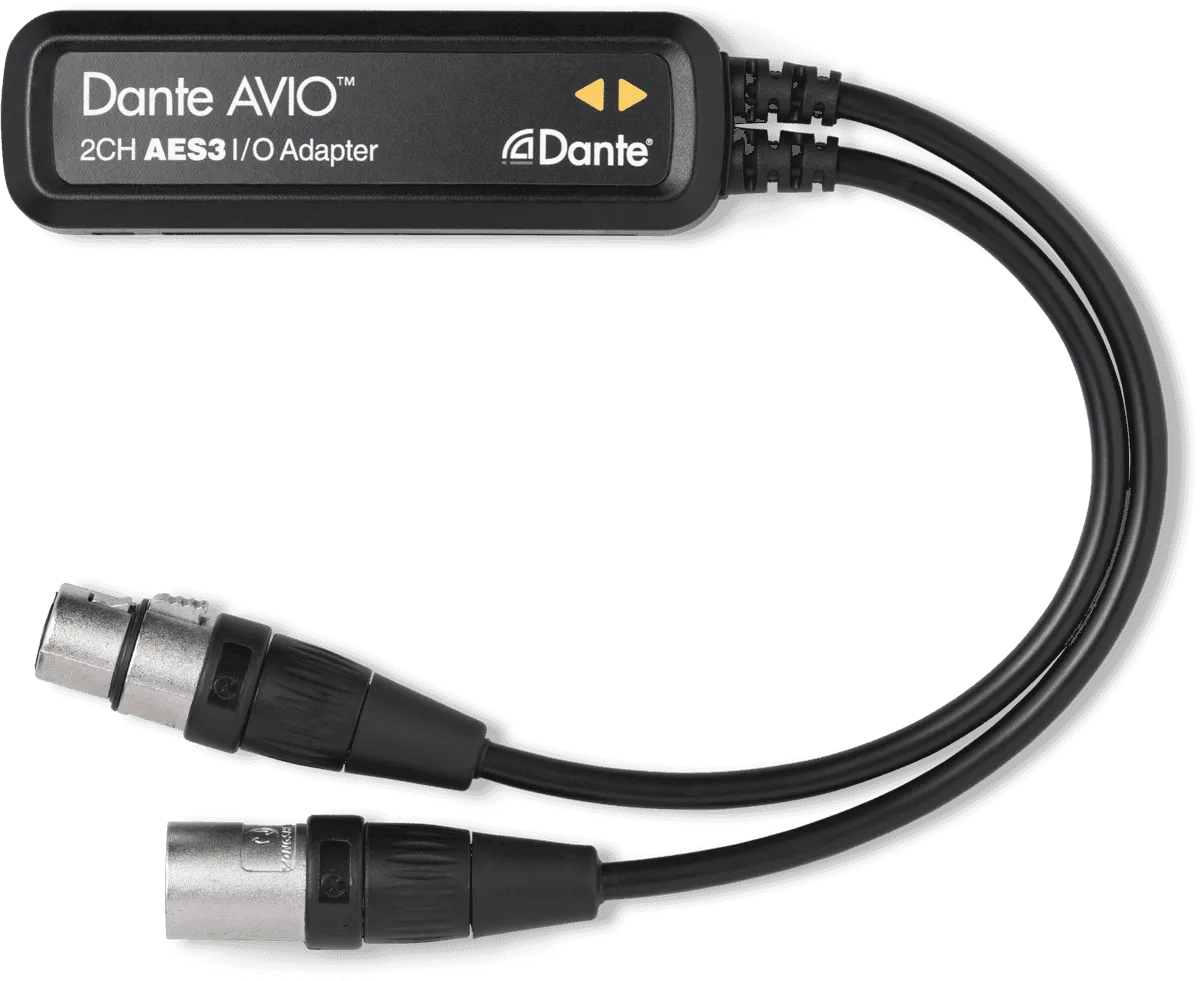

The Dante AVIO AES3/EBU Adapter lets you use your favorite digital audio gear on a Dante audio network. Don’t abandon great AES3-connected amplifiers, DSPs and mic preamps - adapt them to the world of audio networking with Dante AVIO.

AVIO is easily controlled with the Dante Controller software from Audinate connected to a PC or Mac.

• Send audio to analog power amplifiers and powered speakers over a Dante audio network

• Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters

• Create easy drop-points for connecting cry rooms and overflow areas to a Dante network

• Resolution: 44.1, 48, 96 kHz / 24-Bit

• Requires "POE" (Power over Ethernet)

• Connectors: RJ45

• Connectors AES3: 1 x XLR male, 1 x XLR female

• Impedance: 110 Ohm

• Signal to noise ratio: >100dB
